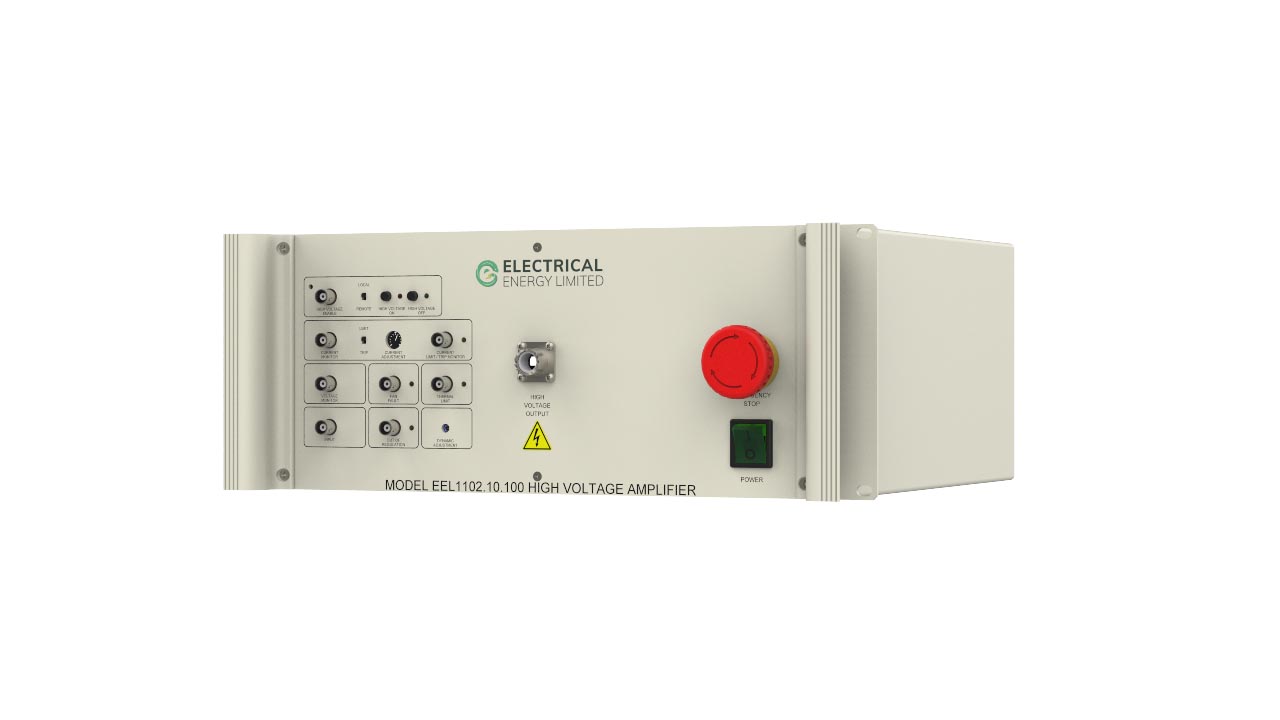

Model EEL1102.10.100

The Model EEL1102.10.100 High Voltage Amplifier is a rack mountable, high speed, 110 Watt High Voltage Amplifier capable of generating a 0 to +/-11kVpp output @ +/-10mA DC or +/-100mA peak AC for 4ms. Incorporates Thermal Limit and Fan Fault protections, and has an optional LCD Display with digital controls having Function Generator and DC offset capabilities.

1V=1000V
INPUT GAIN

1V=10mA
CURRENT MONITOR

1000:1
VOLTAGE MONITOR

Voltage
+/- 11kV

Current
+/- 10mA DC, or +/- 100mA peak AC for 4ms

Power Rating
110W

Input Gain
1V = 1000V

Voltage Monitor
1000:1 (1V represents 1000V)

Current Monitor
1V = 10mA

Connectors
BNC, BNC w/ shorting plug

Dimensions
178 x 432 x 356 mm (7 x 17 x 14 in)

Items Included
Line cord, Manual, HV Output Cable
