Model EEL1102.05

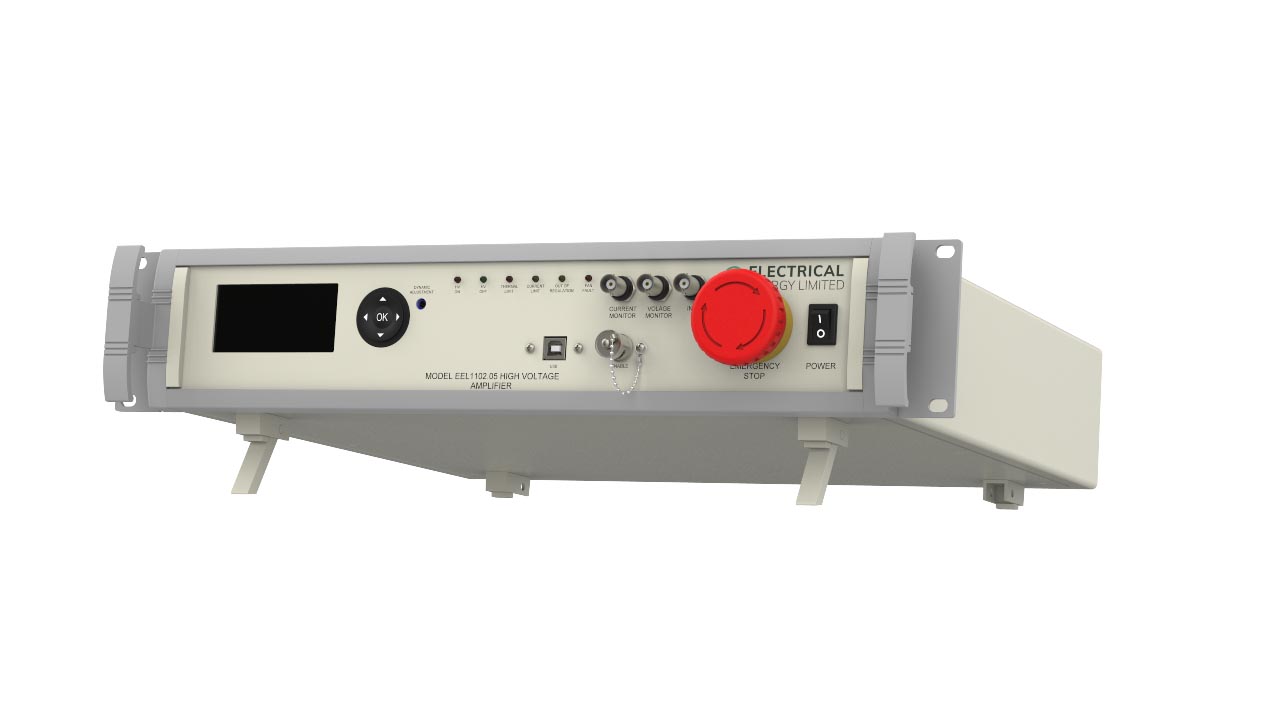

The Model EEL1102.05 High Voltage Amplifier is a compact, low profile, bench top and rack mountable, high speed, 55 Watt High Voltage Amplifier capable of generating a 0 to +/-11kVpp output @ +/-5mA DC or peak AC, which can be controlled internally, externally, or through software. Comes standard with an LCD Display and digital controls having Function Generator and DC offset capabilities.
![](assets/images/model_EEL1102_05.jpg)
1V=1000V
INPUT GAIN
1V=500uA
CURRENT MONITOR
1000:1
VOLTAGE MONITOR
Voltage
+/- 11kV
Current
+/- 5mA DC or peak AC
Power Rating
55W
Input Gain
1V = 1000V
Voltage Monitor
1000:1 (1V represents 1000V)
Current Monitor
1V = 500uA
Connectors
BNC, BNC w/ shorting plug, USB B
Dimensions
85 x 432 x 381 mm (3.34 x 17 x 2.75 in)
Items Included
Line cord, Manual, HV Output Cable, USB Cable
